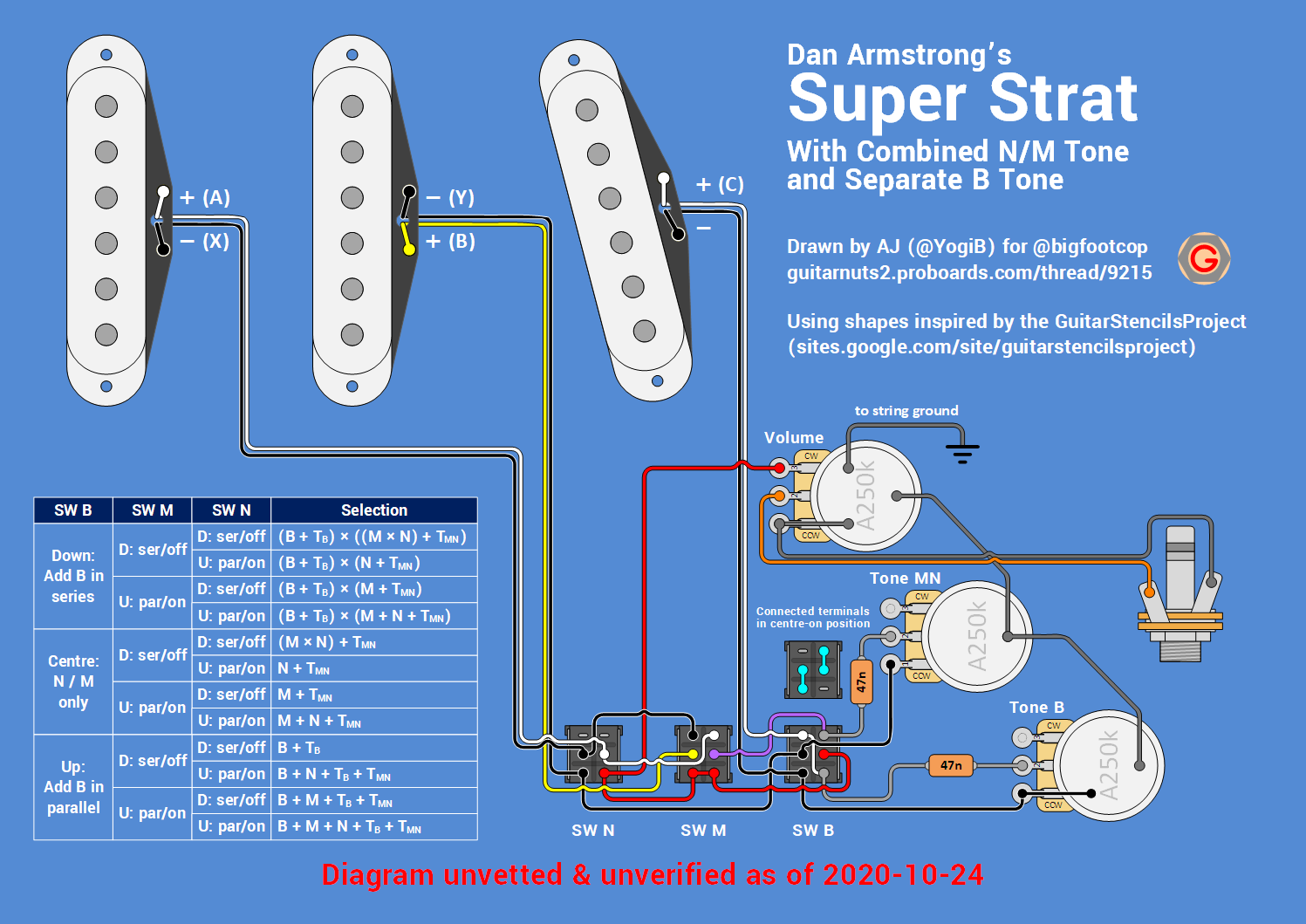

Guitar wiring diagrams, Dan Armstrong, armstrong pick up wiring electronic circuit schematic, Dan Armstrong guitar pick up wiring diagram schematic File Size: 384 Kb Downloads: 1838. Dan Armstrong Super Strat Article and Wiring Diagram. Dan Armstrong's SUPER STRAT As appeared in Guitar Player Magazine Aug, 1987. For guitars with only one tone control, the optional master tone shown in the diagram may be used. The .05uf capacitor in the string-to-ground line is for shockproofing (it greatly reduces the chances for shocks.
![[Discussion] Stratocaster Modified Dan Armstrong Mod with Out of Phase](https://i.imgur.com/Km8rWUa.jpg "[Discussion] Stratocaster Modified Dan Armstrong Mod with Out of Phase")
Dan Armstrong Pickups; Jazz Guitar Pickups; Miscellaneous Pickups; Repair & Rewind services; Wiring Diagrams; Prices;. Ruckinge Kent TN26 2EJ Telephone: 01233 732979 Or contact us by email . Wiring Diagrams. Even the most experienced guitar technicians will often have to spend hours trying to solve wiring problems. Whether you are an expert.. The most difficult challenge was finding components that would closely match the specifications of the original components made back then." When I asked him about schematics of all the Dan Armstrong effects units that are available on the Internet, he went on to add "The problem with all the schematics on the Internet and everywhere is that some are just plain incorrect, and the ones that are.
